Reservoir, Air Suspension: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.

WARNING:

Before performing any service on the air suspension system, the system must be disabled to prevent the system from changing ride height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without the system disabled, or with pressure in any specific component, can cause possible serious or fatal injury.

Perform the Manual Reservoir Deflate procedure. Refer to STANDARD PROCEDURE .
Disconnect the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

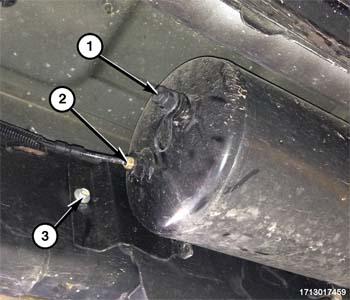

Courtesy of CHRYSLER GROUP, LLC
Remove the Voss fitting (2) from the reservoir. Keep the fitting on air line.
NOTE:
If the air line is not damaged reuse the air line and fitting on the replacement part.
Loosen the front reservoir bracket bolt (3).

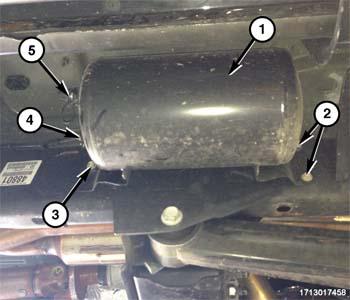

Courtesy of CHRYSLER GROUP, LLC
Remove the two rear reservoir bolts (2), then lift the reservoir off the front bolt (3) and remove it from the vehicle.
