Link, Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

All views are typical.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Support the rear axle with a suitable holding fixture.

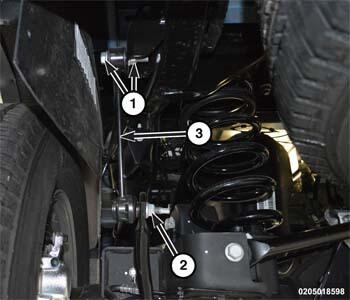

    GC0161589Courtesy of CHRYSLER GROUP, LLC
  3. Remove the stabilizer link upper bolt (1) and nut.
  4. Remove the stabilizer link lower nut (2).
  5. Remove stabilizer link (3).
