Case Assembly, Differential: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0107810Courtesy of CHRYSLER GROUP, LLC
  1. Remove fill hole plug from the differential housing cover.
  2. Remove differential housing cover and drain the lubricant.
  3. Remove axle shafts.

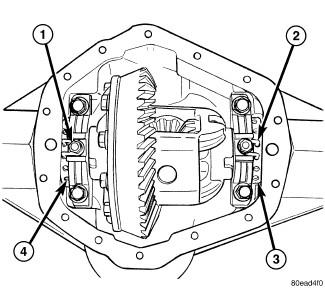

  4. Remove adjuster (3) lock bolts (1) and adjuster locks (2).
    GC0107811Courtesy of CHRYSLER GROUP, LLC
  5. Mark bearing caps left and right for installation reference.
  6. Remove bearing cap bolts and remove bearing caps.

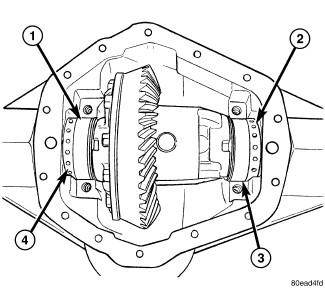

  7. Loosen differential bearing (1, 3) adjusters (2, 4) with a hammer and punch.
  8. Remove differential case from the housing.
  9. Remove bearing cups (1, 3) and tag them left and right for installation reference.
