Case Assembly, Differential: Disassembly

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Remove ring gear. Refer to GEAR, RING AND PINION, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

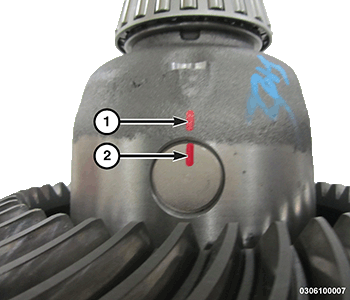

Mark the pinion shaft (2) to differential case (1) for assembly reference.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not attempt to remove the coiled roll pin from the ring gear side.

NOTE:
Do not attempt to shear the pinion shaft by pressing on the end of the shaft.

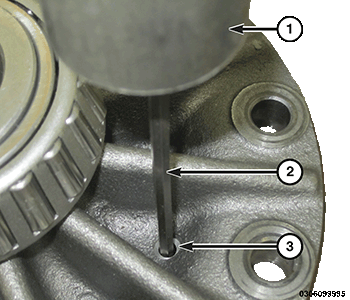

Using a press (1) and a suitable drift (2) inserted into the service hole of the differential case (3) on the non ring gear side, press out the coiled roll pin.

Courtesy of CHRYSLER GROUP, LLC

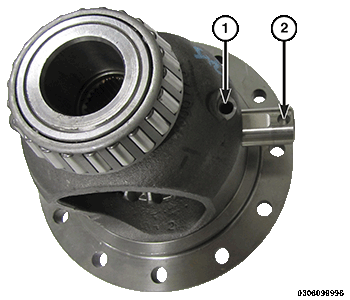

Slide the pinion shaft (2) out of the differential case (1).

Courtesy of CHRYSLER GROUP, LLC

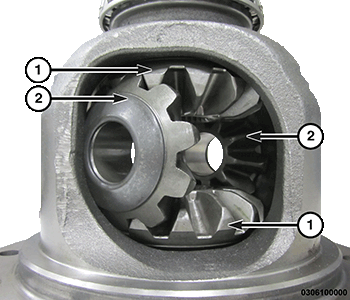

Rotate the pinion gears with thrust washer (2) to the differential windows and remove the gears.

Courtesy of CHRYSLER GROUP, LLC

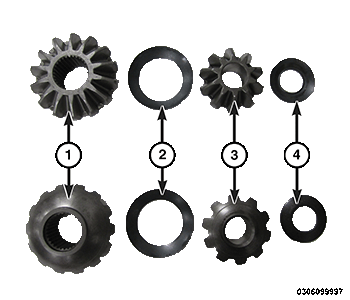

Remove differential side gears (1) and thrust washers (2).
