Case Assembly, Differential, Electric: Assembly
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Internal differential components are serviced with the case assembly.

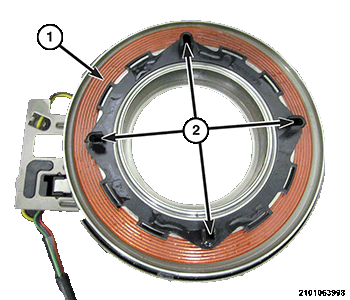

- Inspect the electric locker actuator stand off legs (2), replace the actuator assembly if any of them are broken.

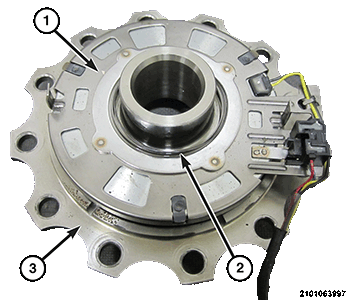

- Inspect the electric locker sensor magnet (1) for debris or damage, if necessary clean with an aerosol solvent and compressed air.

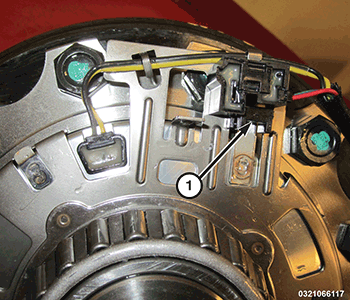

- Install the electric locker actuator (1) onto the differential (2).
- Install the differential side bearing. Refer to BEARING, DIFFERENTIAL SIDE, INSTALLATION .
