Bearing, Axle Shaft: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove axle shaft. Refer to SHAFT, AXLE, REMOVAL .
    GC0174013Courtesy of CHRYSLER GROUP, LLC
  2. Remove retainer ring (4) from the axle shaft tube.
  3. Remove hub bearing nut locking key (1) from the axle shaft tube (3).
  4. Remove hub bearing nut with Socket (special tool #2029500030, Socket, Hub Nut).
  5. Remove hub and bearings from the axle.

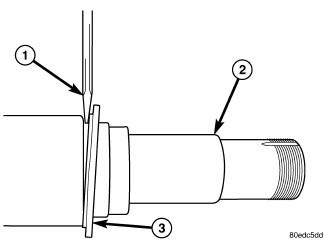

    GC0107802Courtesy of CHRYSLER GROUP, LLC
  6. Pry out hub bearing seal from the back of the hub.
    NOTE:

    The inner part of the seal (3) may stay on the axle tube (2). This part must also be removed with a pry bar (1).

  7. Remove rear bearing.
  8. Remove hub bearing cups with a hammer and drift.
