Switch, Remote Radio: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

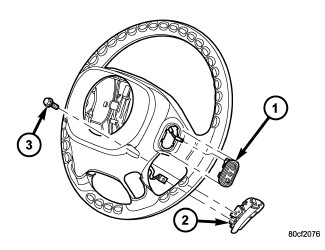

- Install remote radio switch (1) to the steering wheel.
- Connect the wire harness to the remote radio switch.
- Install the speed control switches (2). Refer to SWITCH, SPEED CONTROL, INSTALLATION .
- Install the driver airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
- Connect the battery negative cable.
