Module, External Disc: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

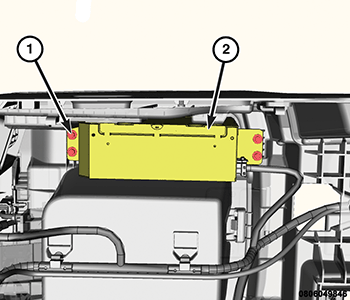

GC0169701Courtesy of CHRYSLER GROUP, LLC
  1. Position the disc player (2) onto the floor console.
  2. Install and securely tighten the mounting fasteners (1).
  3. Install the wire harness connector.
  4. Install the floor console. Refer to CONSOLE, FLOOR, LID, INSTALLATION .
  5. Connect the negative battery cable.
