Media Hub: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
The media hub can be located in the floor console or the center seat storage bin, depending on how equipped.
NOTE:
The four retaining tabs on the back of the media hub must be compressed for removal
Refer to MEDIA HUB, REMOVAL .

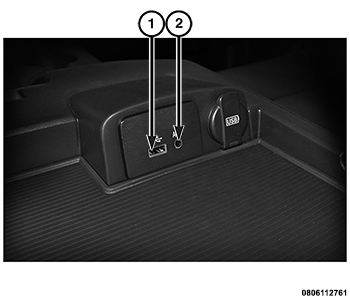

The media Hub is a centralized connection point on the vehicle that contains:
- USB port (1)
- 3.5 mm auxiliary input jack (2)
NOTE:
The USB port provides 5 volts at 1.5 amps to charge the media device battery.
For further information, refer to the Uconnect Access Users's Manual.
