Engine To Heat Shield

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

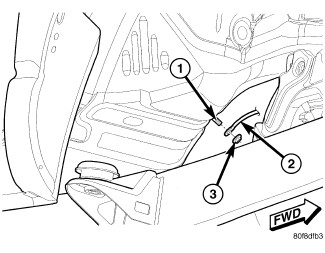

GC0091833Courtesy of CHRYSLER GROUP, LLC
  1. Install the mounting fastener (3) and ground strap (2) to the heat shield (1).
  2. Tighten mounting fastener.
  3. Install the retaining bolt and ground strap to the engine cylinder heads.
  4. Tighten the retaining bolts.
  5. Connect the negative battery cable.
