AFTERTREATMENT Inspection Guideline: Notes
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

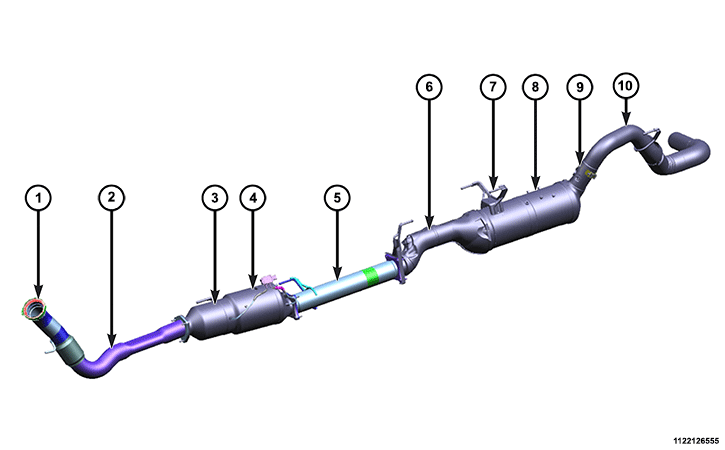

 Courtesy of CHRYSLER GROUP, LLC
|
| 1 |
BAND CLAMP |
6 |
SELECTIVE CATALYTIC REDUCTION (SCR) |
| 2 |
FLEX PIPE ASSEMBLY |
7 |
SELECTIVE CATALYTIC REDUCTION/AMMONIA SLIP CATALYST (SCR/ASC) |
| 3 |
DIESEL OXIDATION CATALYST (DOC) |
8 |
TORCA CLAMP |
| 4 |
DIESEL PARTICULATE FILTER (DFP) |
9 |
EXTENSION PIPE |
| 5 |
DECOMPOSITION TUBE |
10 |
TAILPIPE |

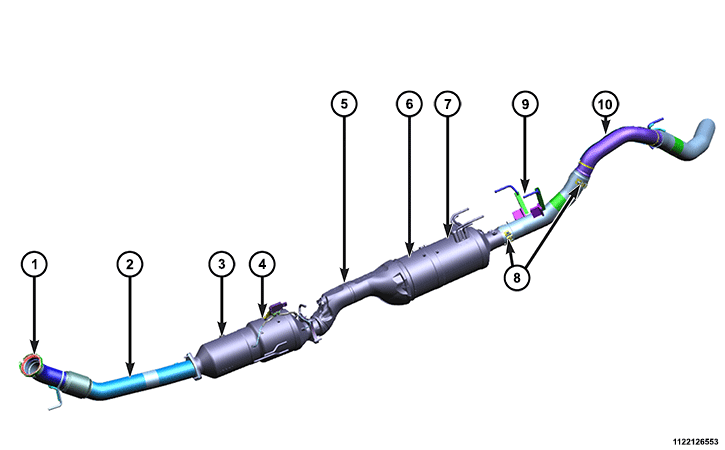

 Courtesy of CHRYSLER GROUP, LLC
|
| 1 |
BAND CLAMP |
6 |
DECOMPOSITION TUBE |
| 2 |
FLEX PIPE ASSEMBLY |
7 |
SELECTIVE CATALYTIC REDUCTION (SCR) |
| 3 |
DIESEL OXIDATION CATALYST (DOC) |
8 |
SELECTIVE CATALYTIC REDUCTION/AMMONIA SLIP CATALYST (SCR/ASC) |
| 4 |
DIESEL PARTICULATE FILTER (DFP) |
9 |
TORCA CLAMP |
| 5 |
EXTENSION PIPE (172/197 WB ONLY) |
10 |
TAILPIPE |
