Reservoir, Brake Master Cylinder: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All views are typical.

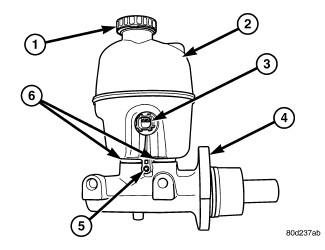

| 1 - MASTER CYLINDER CAP |
| 2 - FLUID RESERVOIR |
| 3 - FLUID LEVEL SWITCH |
| 4 - MASTER CYLINDER |
| 5 - MOUNTING BOLT |
| 6 - GROMMETS |
CAUTION:
Do not use any type of tool to install the grommets. Tools may cut, or tear the grommets creating a leak problem after installation. Install the grommets using finger pressure only.
- Lubricate the new grommets (6) with clean brake fluid and Install new grommets in cylinder body. Use finger pressure to install and seat grommets (6).
- Start the reservoir (2) in grommets (6). Then rock the reservoir back and forth while pressing downward to seat it into the grommets.
- Install the mounting bolt (5) for the reservoir (2) to the master cylinder (4).
- Reconnect the electrical connector to the fluid reservoir level switch (3).
- Remove the prop rod from the vehicle.
- Fill and bleed base brake system. Refer to STANDARD PROCEDURE .
