Booster, Power Brake, Hydro-Boost: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the booster is being replaced because the power steering fluid is contaminated, flush the power steering system before replacing the booster.

With engine off depress the brake pedal 5 times to discharge the accumulator.

Courtesy of CHRYSLER GROUP, LLC

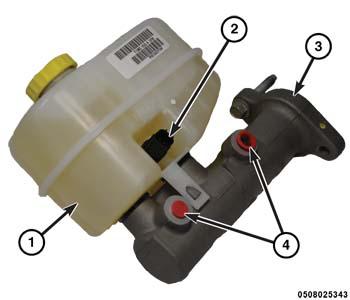

Remove the master cylinder (3). Refer to MASTER CYLINDER, BRAKE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

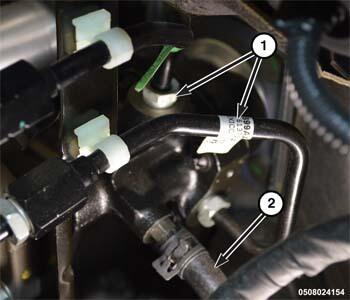

Remove the return hose (2) and the two pressure lines (1) from the hydraulic booster.

Courtesy of CHRYSLER GROUP, LLC

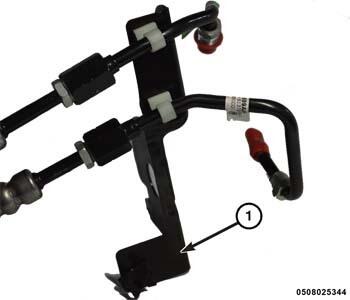

Position the pressure hoses and bracket (1) aside.

Courtesy of CHRYSLER GROUP, LLC

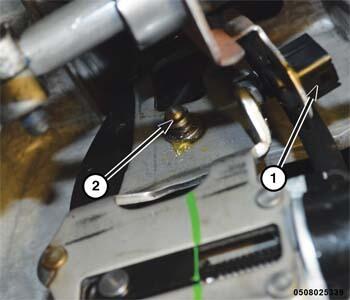

Remove the stop lamp sensor (1) from the pedal assembly. Refer to SENSOR, STOP LAMP, REMOVAL .
Remove the booster push rod clip and the push rod from the brake pedal stud (2).

Courtesy of CHRYSLER GROUP, LLC

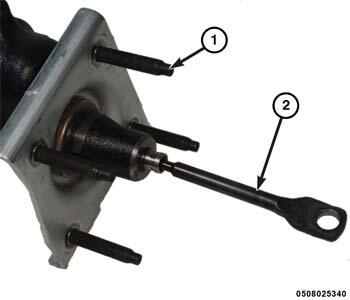

Remove the nuts from the mounting studs (1) then remove the hydraulic booster.
