Switch, Adjustable Pedals: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

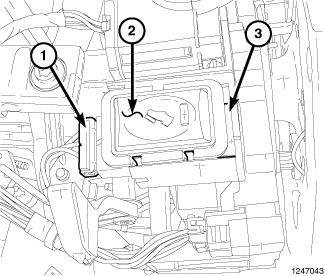

GC0087306Courtesy of CHRYSLER GROUP, LLC
  1. Remove the lower steering column shroud. Refer to SHROUD, STEERING COLUMN, REMOVAL .
  2. Disconnect the electrical connector (1) from the adjustable pedal switch (2).
  3. Remove the switch (2) from the steering column by releasing the retaining tab (3) and pulling the switch away from the column.
