Hydraulic Control Unit (HCU): Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

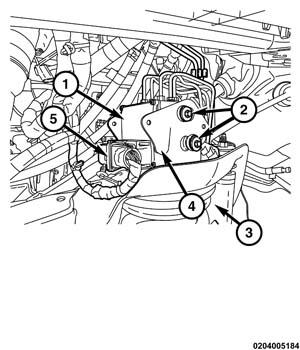

GC0155446Courtesy of CHRYSLER GROUP, LLC
  1. Install the HCU/ABM (1) and mounting bolts (2) into the mounting bracket (4).

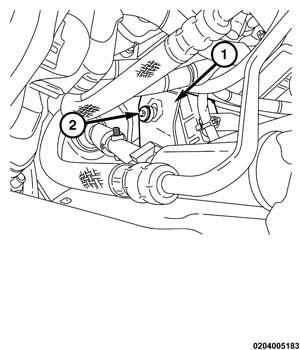

    GC0155478Courtesy of CHRYSLER GROUP, LLC
  2. Install the inner mounting bolt (2) into the mounting bracket. Tighten all fastener to 15 N.m (11 ft. lbs.).
    GC0155446Courtesy of CHRYSLER GROUP, LLC
  3. Install the brake lines to the HCU (1) and tighten to 19 N.m (170 in. lbs.).
  4. Install the electrical harness connector to the HCU/ABM (5) and push down on the release to secure the connector.

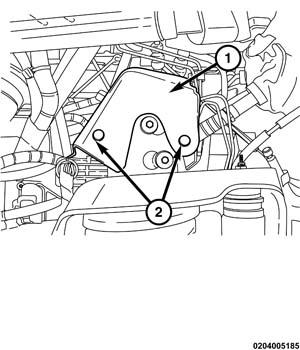

    GC0155417Courtesy of CHRYSLER GROUP, LLC
  5. Install the HCU/ABM shield (1) and retainers (2).
  6. Install the left front wheel house splash shield. Refer to INSTALLATION .

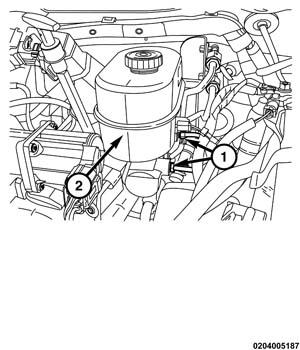

    GC0155434Courtesy of CHRYSLER GROUP, LLC
  7. Install the brake lines to the master cylinder and tighten to 19 N.m (170 in. lbs.).
  8. Install the battery cables to the battery.
  9. Remove brake pedal holder.
  10. Bleed ABS brake system. Refer to STANDARD PROCEDURE - ABS BRAKE BLEEDING  .
