Air To Oil Cooler - Diesel
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

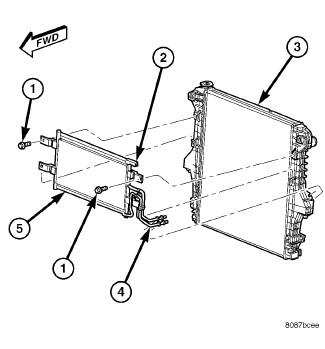

| 1 - MOUNTING BOLTS |
| 2 - THERMOSTATIC BYPASS VALVE |
| 3 - RADIATOR |
| 4 - QUICK-CONNECT FITTINGS |
| 5 - TRANSMISSION OIL COOLER |
- Remove Charge Air Cooler. Refer to COOLER and HOSES, Charge Air, Removal, 6.7L .
- Place a drain pan under the oil cooler.
- Raise the vehicle.
- Disconnect the oil cooler quick-connect fittings from the transmission lines. Refer to TUBES AND HOSES, Transmission Oil Cooler, Standard Procedure .
- Remove the charge air cooler-to-oil cooler bolt. Refer to Fig 1.
- Remove two mounting nuts.
- Remove the oil cooler and line assembly towards the front of vehicle. Cooler must be rotated and tilted into position while removing.
