COOLER, Transmission Oil: Removal: 3.7L/4.7L/5.7L
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

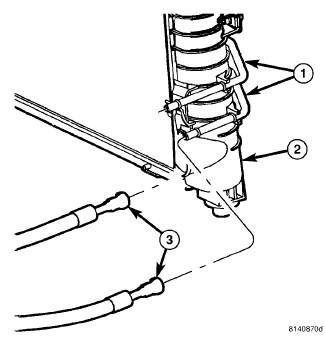

| 1 - TRANSMISSION COOLER LINES |
| 2 - RADIATOR |
| 3 - QUICK CONNECT FITTINGS |
- Place a drain pan under the oil cooler lines.
- Disconnect the transmission oil cooler line quick-connect fitting at the cooler outlet. Refer to TUBES AND HOSES, Transmission Oil Cooler, Standard Procedure . Plug the cooler lines to prevent oil leakage.
- Unsnap the transmission cooler tubes from the radiator tank clips.
- Remove the bolt attaching the transmission cooler to the radiator.
- Remove oil cooler from the vehicle. Take care not to damage the radiator core or transmission cooler tubes.
