Gas Engines
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

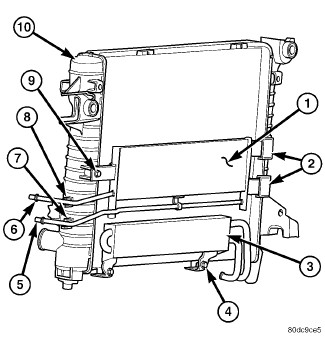

| 1 - TRANS OIL COOLER |
| 2 - LOCATING TABS |
| 3 - POWER STEERING OIL COOLER |
| 4 - POWER STEERING OIL COOLER MOUNTING BOLT |
| 5 - TRANS OIL COOLER OUTLET |
| 6 - TRANS OIL COOLER INLET |
| 7 - COOLER LINE CLIP |
| 8 - COOLER LINE CLIP |
| 9 - MOUNTING BOLT |
| 10 - RADIATOR |
An air-to-oil transmission oil cooler is standard on all engine packages. The transmission oil cooler is mounted to the front of the radiator above the power steering cooler. Refer to Fig 1.
