4.7L Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

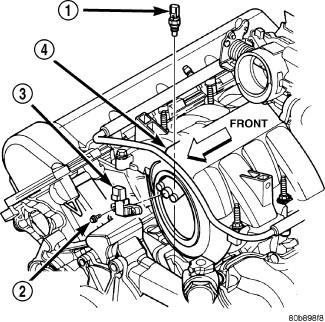

| 1 - ECT SENSOR |
| 2 - MOUNTING BOLTS (2) |
| 3 - MAP SENSOR |
| 4 - INTAKE MANIFOLD |
WARNING:
Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the engine coolant temperature (ECT) sensor.
- Partially drain the cooling system. Refer to Standard Procedure .
- Disconnect the electrical connector from the ECT sensor (1).
- Remove the sensor from the intake manifold (4).
