3.7L Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

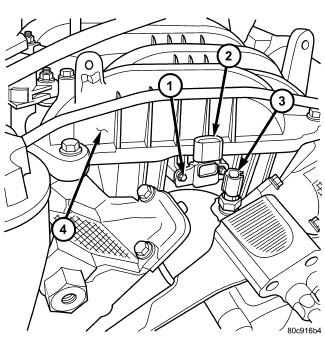

| 1 - MOUNTING SCREWS |
| 2 - MAP SENSOR |
| 3 - ECT SENSOR |
| 4 - FRONT OF INTAKE MANIFOLD |
WARNING:
Hot, pressurized coolant can cause injury by scalding. Cooling system must be partially drained before removing the coolant temperature sensor.
- Partially drain the cooling system.
- Disconnect the electrical connector from the ECT sensor (3).
- Remove the sensor from the intake manifold (4).
