6.7L Diesel
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

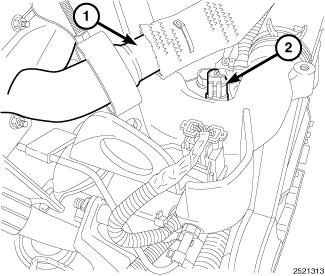

- Install ETC sensor (2) to engine.
- Tighten sensor (2) to 18 N.m (13 ft. lbs.) torque.
- Connect the electrical connector to the ETC sensor (2).
- Install heat shield.
- Install the upper EGR tube. Refer to TUBE, Exhaust Gas Recirculation (EGR), Crossover, Installation .
- Install the engine trim cover.
- Replace any lost engine coolant. Refer to Standard Procedure .
