6.7L Diesel
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Install the rubber insulators to the alignment dowels at the lower part of radiator.

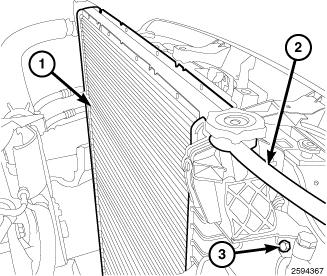

- Lower the radiator into position while guiding the two alignment dowels into the lower radiator support.
- Raise the vehicle.
- Position the power steering cooler on the radiator and tighten the nuts to 10 N.m (90 in. lbs.)
- Lower the vehicle.
- Install the two upper radiator mounting bolts. Tighten the bolts to 12 N.m (105 in. lbs.) torque.
- If equipped, connect the transmission cooler lines to the transmission cooler. Inspect quick connect fittings for debris and install until an audible "click" is heard. Tug on lines to verify connection. Refer to TUBES AND HOSES, Transmission Oil Cooler, Standard Procedure .
- Connect both radiator hoses and install hose clamps.
- Install the cooling fan. Refer to FAN, Cooling, Electric, Installation or FAN, Cooling, Viscous, Installation .
- Position the coolant recovery tank hose into the clips located on the top of the radiator.
- Install the air box and the turbocharger inlet hose. Refer to BODY, Air Cleaner, Installation, 6.7L . Tighten clamps to 4 N.m (35 in. lbs.).
- Connect the mass airflow sensor electrical connector and ambient air temp sensor electrical connector (if equipped).

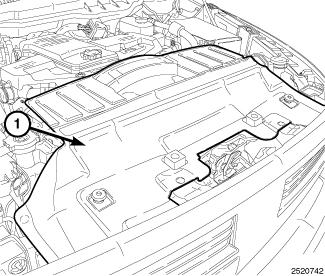

- Install the upper radiator shroud (1).
- If equipped, connect the negative battery cable to the auxiliary battery.
- Connect the battery negative cable.
- Position heater controls to full heat position.
- Fill cooling system with coolant. Refer to Standard Procedure .
- Operate the engine until it reaches normal operating temperature. Check the cooling system and automatic transmission (if equipped) for leaks.
