6.7L Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

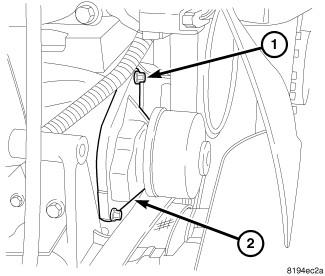

| 1 - BOLT |
| 2 - WATER PUMP |
- Disconnect battery negative cables.
- Drain cooling system. Refer to Standard Procedure .
- Disconnect ambient air temp sensor electrical connector and mass airflow sensor electrical connector (if equipped).
- Remove turbocharger inlet tube and air filter housing. Refer to BODY, Air Cleaner, Removal, 6.7L .
- Remove generator assembly. Refer to GENERATOR, Removal .
- Remove the accessory drive belt. Refer to BELT, Serpentine, Removal .
- Remove water pump mounting bolts (1).
- Remove O-ring from water pump (2).
- Remove water pump (2). Clean water pump sealing surface on cylinder block.
