6.7L Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
| 1 - BLOCK HEATER |
- Disconnect the battery negative cables.
- Drain coolant from radiator and cylinder block. Refer to Standard Procedure .
- Unscrew the power cord retaining cap and disconnect cord from heater element.

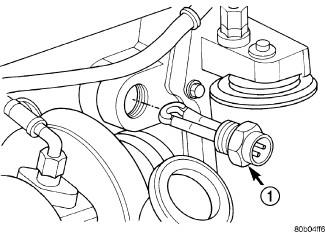

- Using a suitable size socket, loosen and remove the block heater element. Refer to Fig 1.
