6.7L Diesel

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

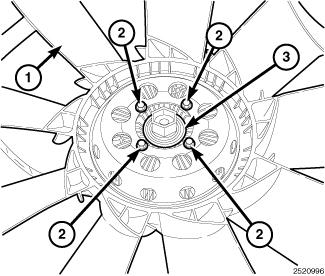

Fig 1: Installing Fan Blade Mounting Bolts
GC0137089Courtesy of CHRYSLER LLC
CAUTION:

The electronically controlled viscous fan drive is vibration and impact sensitive, especially at the electrical connectors. Do not drop the unit.

  1. Install the fan blade assembly (1) to the electrically controlled viscous fan drive (3). Tighten the mounting bolts (2) to 24 N.m (18 ft. lbs.) torque.

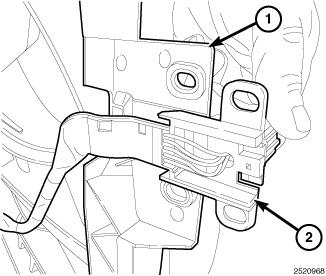

    Fig 2: Installing Electrical Connector Bracket
    GC0137088Courtesy of CHRYSLER LLC
  2. Position the fan/fan drive assembly inside fan shroud (1).
  3. Install the electrical connector bracket (2) by sliding the connector bracket (2) into the fan shroud (1) and engaging the retainer clip.
  4. Tilt the fan shroud/fan blade toward front of vehicle and position the fan shroud/fan blade as an assembly into the engine compartment.
  5. Engage the fan shroud lower retaining clips.
  6. Install the fan blade/fan drive assembly to the fan pulley by turning the mounting nut clockwise (as viewed from front). The threads on the viscous fan drive are RIGHT-HAND.  A 36 MM Fan Wrench can be used. Place a bar or screwdriver between the fan pulley bolts to prevent pulley from rotating. Tighten the mounting nut to 115 N.m (85 ft. lbs.) torque.

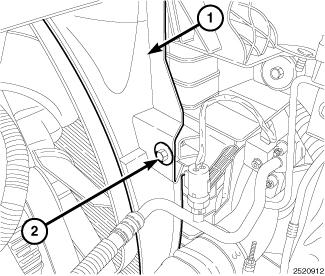

    Fig 3: Fan Shroud-To-Radiator Shroud Mounting Bolt
    GC0137087Courtesy of CHRYSLER LLC
  7. Install the fan shroud-to-lower radiator shroud push pins.
  8. Install the fan shroud-to-radiator shroud mounting bolt (2) located on the passenger side of the vehicle. Tighten the bolt (2) to 24 N.m (18 ft. lbs.).

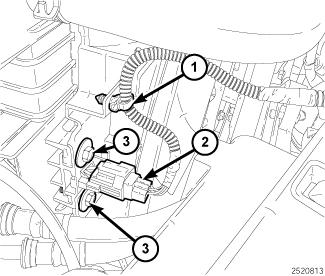

    Fig 4: Viscous Fan Electrical Connector
    GC0137086Courtesy of CHRYSLER LLC
  9. Install the two fan shroud-to-radiator shroud mounting bolts (3) located on the driver side of the vehicle. Tighten the bolts (3) to 24 N.m (18 ft. lbs.).
  10. Position and connect the fan drive wire harness support (1) to the fan shroud.
  11. Connect the electronically controlled viscous fan electrical connector (2) at the fan shroud.
    Fig 5: Upper Radiator Shroud
    GC0137085Courtesy of CHRYSLER LLC
  12. If equipped, connect the negative battery cable to the auxiliary battery.
  13. Connect the negative battery cable.
  14. Install the upper radiator shroud (1).
    NOTE:

    Viscous Fan Drive Fluid Pump Out Requirement: After installing a new viscous fan drive, bring the engine speed up to approximately 2000 RPM and hold for approximately two minutes. This will ensure proper fluid distribution within the drive.

  15. Start the vehicle and check for proper clearance between the fan blade assembly and the fan shroud.
