6.7L Diesel
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- If equipped, disconnect and isolate the negative battery cable from the auxiliary battery.

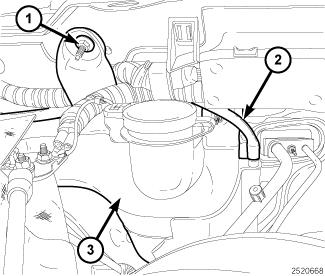

- Partially drain coolant until the coolant recovery bottle (3) and overflow hose (2) are completely empty.
- Remove the overflow hose (2) from the coolant recovery bottle (3).
- Remove the mounting bolts (1).
- Remove coolant recovery bottle (3) from the vehicle.
