3.7L/4.7L/5.7L Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

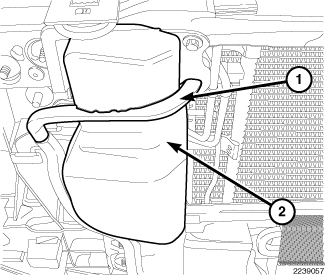

- Align the coolant recovery bottle (2) mounting pins into the slots located on the radiator support side and push the coolant recovery bottle (2) into place.NOTE:
Ensure that the mounting pins are properly seated into the radiator support.
- Install the coolant recovery bottle (2) to radiator support bolts. Tighten the bolts to 10 N.m (89 in. lbs).
- Connect the recovery hose (1) to the radiator.
- Install the front grille. Refer to GRILLE, Installation .
- Fill the cooling system. Refer to Standard Procedure .
- Test the system for leaks. Refer to Diagnosis and Testing .
