Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

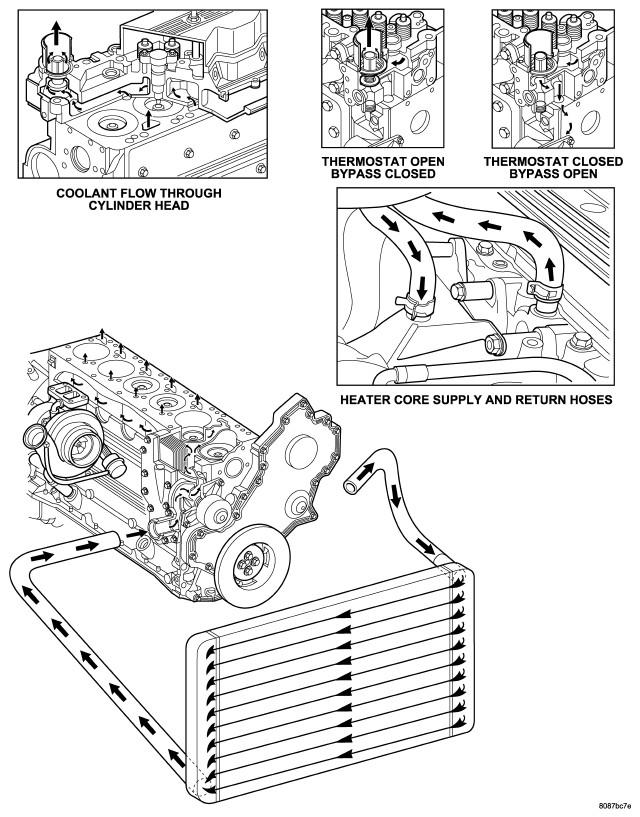

The diesel engine cooling system consists of :
- Cross-flow radiator
- Belt driven water pump
- Belt driven Electronically Controlled Viscous fan drive (Diesel Engine)
- Engine mounted fan shroud
- Radiator pressure cap
- Vertically mounted thermostat
- Coolant reserve/recovery system
- Transmission Oil Cooler (Automatic Transmission Only)
- Engine mounted Transmission oil cooler
- Radiator mounted fan shroud
- EGR Cooler
- Turbocharger Actuator
