5.7L Engine

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

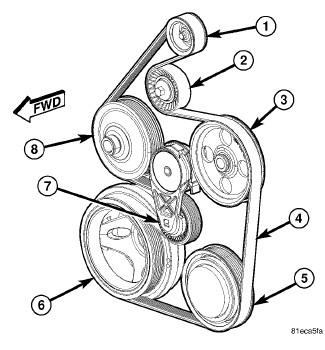

Fig 1: Identifying Drive Belt (5.7L Engine)
GC0091800Courtesy of CHRYSLER LLC
  1. Remove the accessory drive belt (4). Refer to BELT, Serpentine, Removal .
  2. Remove the bolt from the belt tensioner assembly (7).
  3. Remove the belt tensioner assembly (7).
