6.7L Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

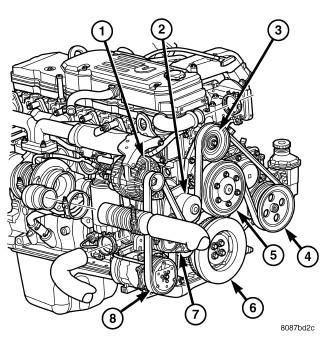

| 1 - GENERATOR |
| 2 - WATER PUMP |
| 3 - IDLER |
| 4 - POWER STEERING PUMP |
| 5 - RADIATOR FAN PULLEY |
| 6 - CRANKSHAFT |
| 7 - AUTOMATIC TENSIONER |
| 8 - A/C COMPRESSOR |
- Install tensioner assembly (7) to water inlet bracket. A dowel is located on back of tensioner. Align this dowel to hole in tensioner mounting bracket. Tighten bolt to 43 N.m (32 ft. lbs.) torque.
- Install drive belt. Refer to BELT, Serpentine, Installation .
