3.7L/4.7L Engine

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

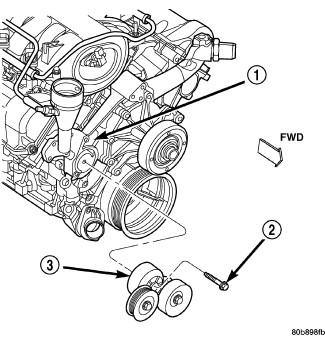

Fig 1: Identifying Automatic Belt Tensioner, Bolt And Mounting Bracket

Courtesy of CHRYSLER LLC

1 - TIMING CHAIN COVER

2 - BOLT TORQUE TO 41 N.m (30 FT LBS)

3 - AUTOMATIC BELT TENSIONER

An indexing slot is located on back of tensioner (3). Align this slot to the head of the bolt on the front cover. Install the mounting bolt. Tighten bolt (2) to 41 N.m (30 ft. lbs.).
Install accessory drive belt. Refer to BELT, Serpentine, Installation .
Check tensioner indexing marks.
