Module, Integrated Trailer Brake (ITBM): Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

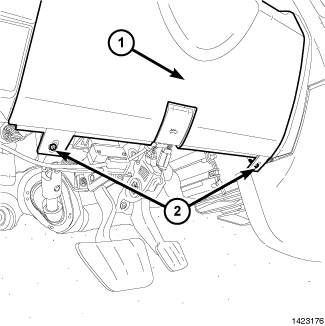

GC0086792Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the steering column opening cover retaining screws (2).
  3. Using a trim stick, remove the steering column opening cover (1) from the instrument panel and position aside.
    GC0089023Courtesy of CHRYSLER GROUP, LLC
  4. Using a trim stick, from the notch on the bottom, remove the left instrument panel side cover (1). May need to remove the door seal for better access to the side panel cover.

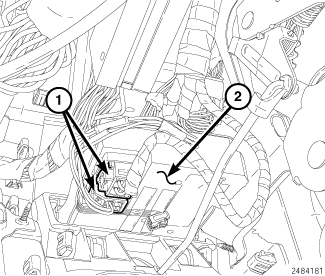

    GC0137095Courtesy of CHRYSLER GROUP, LLC
  5. From under the instrument panel, disconnect the integrated trailer brake module (ITBM) electrical connectors (1).
    NOTE:

    One screw on the right front of the ITBM not shown.

  6. Remove the ITBM retainer screws.
    NOTE:

    There is a retainer clip on each side of the ITBM near the bottom.

  7. Using a trim stick, remove the ITBM from the IP.
