Module, Integrated Trailer Brake (ITBM): Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

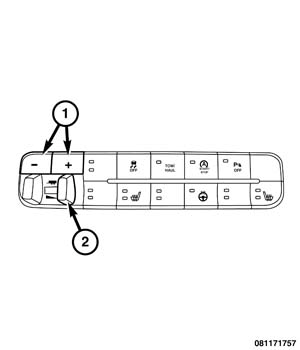

The Integrated Trailer Brake Module (ITBM) switch is located on the Integrated Center Stack (ICS). There is an adjustment switch (1) and a trailer manual sliding brake lever/switch (2) on the face of the ICS. The Integrated Trailer Brake Module is located in instrument panel to the right of the steering column right behind the WIN or KIN. The module is a serviceable component. The ITBM the switch and lever can only be serviced by replacing the ICS assembly. For removal of the switch Refer to SWITCH, VENTED SEAT, REMOVAL .
