Module, Air Suspension Control (ASCM): Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the left front seat to its full forward position.
    GC0161576Courtesy of CHRYSLER GROUP, LLC
  2. Remove the Air Supply control module cover (1).
    GC0161618Courtesy of CHRYSLER GROUP, LLC

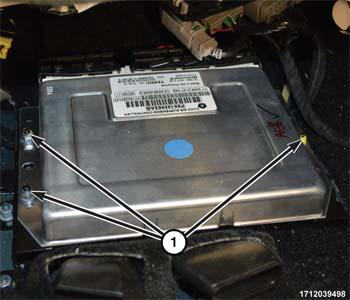

  3. Remove fasteners (1) from Air Supply Control Module (ASCM).
  4. Position the left front seat to its full rearward position.
  5. Disconnect the negative battery cable. Refer to CABLES, BATTERY, REMOVAL .
    GC0154642Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the wire harness connectors (2) from the ASCM.
  7. Remove the ASCM from the mounting bracket.
