Exhaust Gas Temperature Sensor 1/3
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

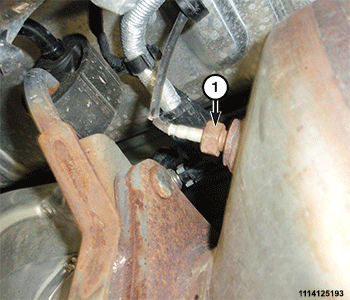

- Install the exhaust temperature sensor (1) and tighten to 30 N.m (22 ft. lbs.).
 Courtesy of CHRYSLER GROUP, LLC
|

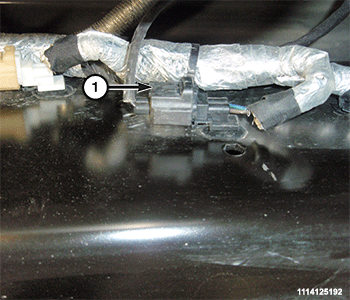

- Attach the wire to the retainer and connect exhaust temperature sensor wire harness connector (1).
- Remove support and lower the vehicle.
- Connect both negative battery cables.
