Sensor, Exhaust Pressure: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- If removed, ensure the exhaust pressure sensor tube (1) is clean and not plugged.
- If removed, install the exhaust pressure sensor tube (1).
- Tighten fitting (3) to 18 N.m (159 in. lbs.).
- Tighten bolt (2) to 20 N.m (177 in. lbs.).

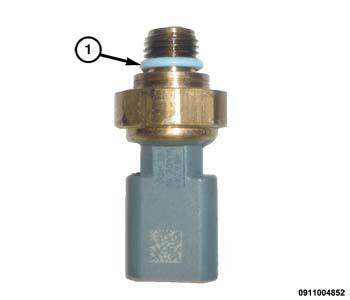

- If necessary, replace the O-ring seal (1).

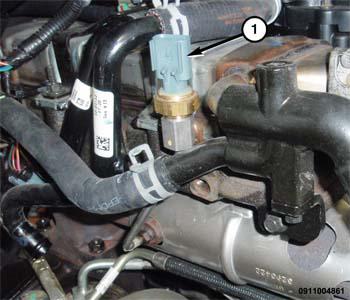

- Install the exhaust pressure sensor (1). Tighten sensor to 32 N.m (24 ft. lbs.).

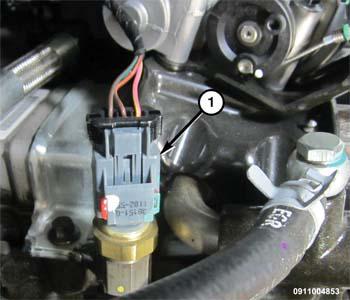

- Connect the exhaust pressure sensor wire harness connector (1).
- Install the engine cover (3). Tighten bolts (1) to 10 N.m (89 in. lbs.).
- Install the oil dipstick (2).
- Connect both negative battery cable.
