Sensor, Differential Pressure: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

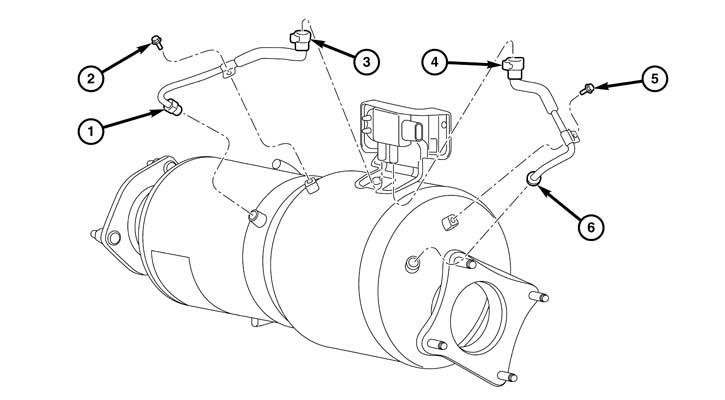

- If removed, install the differential pressure tubing. Tighten the fittings (1, 6) to 30 N.m (22 ft. lbs.).
- If removed, install the differential pressure tubing and tighten the bolts (2, 5) to 5 N.m (44 in. lbs.).

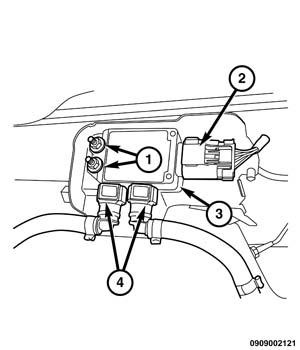

- Install the Differential Pressure Sensor (DPS) (3). Tighten the nuts (1) to 5 N.m (44 in. lbs.).
- Connect the DPS hose (4).
- Connect the DPS wire harness connector (2).
- Remove support and lower the vehicle.
- Connect both of the negative battery cables.
