Section 1588 (Clutch System - 2500 Hd): Flywheel: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission. Refer to REMOVAL .
NOTE:
Vehicles with Dual Mass Flywheel use an adapter plate between the flywheel and crank. This plate does not need to be removed.

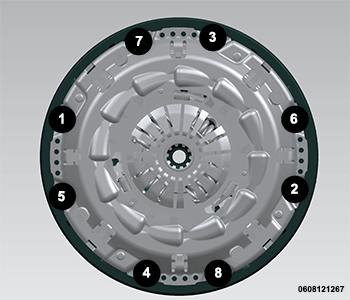

Fig 1: Pressure Plate Bolt Loosening Sequence
Courtesy of CHRYSLER GROUP, LLC
Loosen pressure plate bolts (1-8) evenly, a few threads at a time and in a diagonal pattern to prevent warping the plate.
Remove the eight pressure plate bolts (1-8) completely and remove pressure plate and disc.

Courtesy of CHRYSLER GROUP, LLC

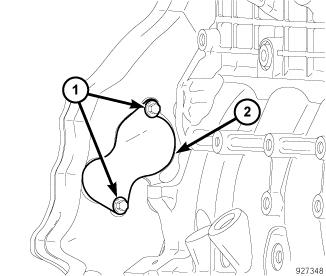

Remove the dust cover bolts (1) and the dust cover (2).

Courtesy of CHRYSLER GROUP, LLC

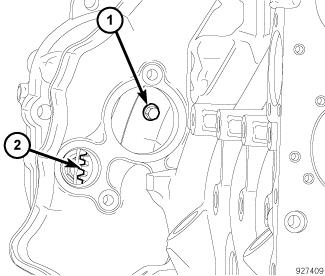

Using the access hole, remove each flexplate-to-flywheel bolt (1). Use Barring Tool (special tool #7471B, Barring Tool) to rotate the engine and flywheel.
Remove the flywheel.
