Disc, Clutch: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Support engine with wood block and adjustable jack stand, to prevent strain on engine mounts.
- Remove transmission and transfer case, if equipped.

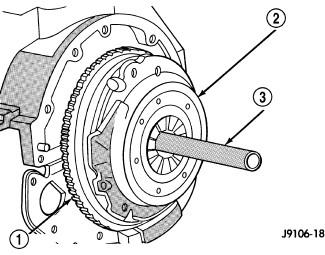

- Insert clutch alignment tool (3) through pressure plate (2) and into pilot bushing, to hold disc in place while removing bolts.

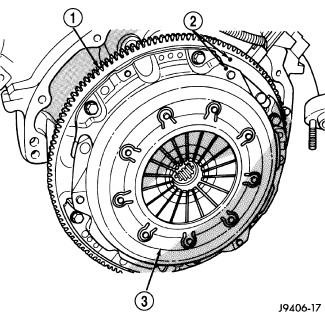

- Loosen pressure plate bolts evenly, a few threads at a time and in a diagonal pattern to prevent warping the plate.
- Remove bolts completely and remove pressure plate, disc and alignment tool.
