Switch, Evaporative Emissions System Monitor: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate negative battery cable.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

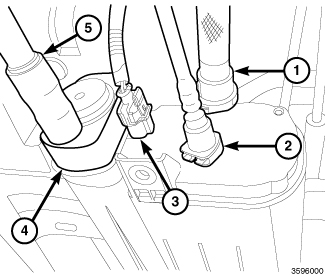

    GC0154061Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect electrical connector (3) from Evaporative System Integrity Monitor (ESIM) switch (4).
  4. Remove vapor canister filter line (5) from ESIM switch (4).
    GC0173188Courtesy of CHRYSLER GROUP, LLC
  5. A lock tab (1) is used on the back of the switch. Push lock tab towards switch while rotating switch counterclockwise 1/4 turn for removal.
    GC0173175Courtesy of CHRYSLER GROUP, LLC
  6. Remove the ESIM from the EVAP canister.
