System, Closed Crankcase Ventilation (CCV): Inspection

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

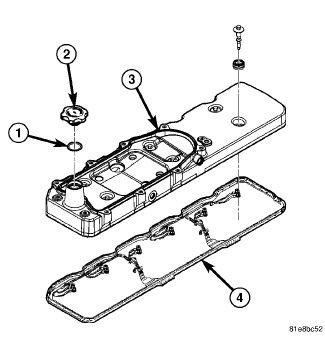

GC0110283Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the Close Crankcase Ventilation System (CCV) by ensuring the oil drain hoses are not kinked or cracked.
  2. Inspect the breather element sealing gasket (3) and surface area for gouges or cracks; this surface should be smooth and free of abrasions.
