Standard Procedure - Drain And Fill

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

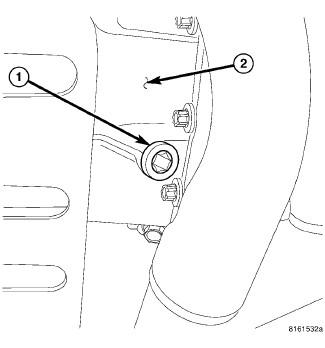

GC0108933Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support vehicle.
  2. Remove drain plug (1) on transmission (2) and drain fluid.
  3. Install drain plug and tighten to 57 N.m (42 ft. lbs.).
    GC0108934Courtesy of CHRYSLER GROUP, LLC
  4. Remove fill plug (1) on right side of the transmission (2).
  5. Fill transmission to approximately 16 mm (0.625 inch) from the bottom of the fill hole.
  6. Install fill plug and tighten to 57 N.m (42 ft. lbs.).
