Rear Housing
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

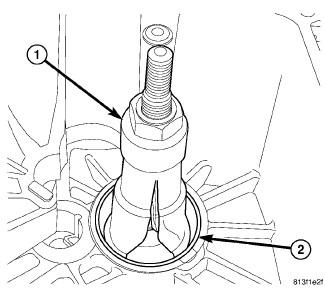

- Remove countershaft bearing cup and mainshaft bearing cup with Puller (special tool #9593, Remover, Bearing Cup) (1) installed in cup (2).

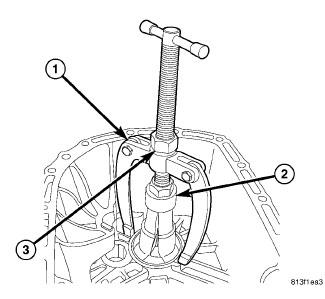

- Install Remover (special tool #8915, Brace) (1) on puller (2) and tighten remover nut (3) to pull cups out of the housing.

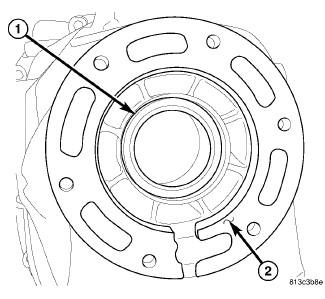

- Remove output shaft seal (1) from housing (2) with seal pick.
