Input Shaft

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

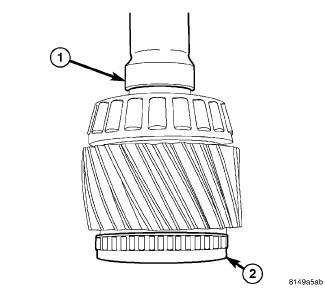

GC0108986Courtesy of CHRYSLER GROUP, LLC
  1. Position input shaft (1) mainshaft bearing seal (2) in a vice then twist input shaft (1) out of the seal (2).

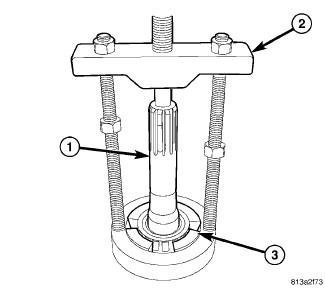

    GC0108987Courtesy of CHRYSLER GROUP, LLC
  2. Remove input shaft (1) bearing with Puller (special tool #C-293-PA, Puller, Press) (2) and Adapters (special tool #C-293-47, Block Set, Puller) (3).
  3. Remove input shaft mainshaft bearing gasket.
