Front Housing

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0108991Courtesy of CHRYSLER GROUP, LLC

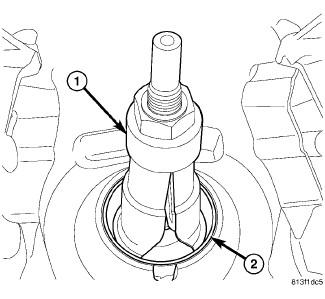

  1. Remove countershaft bearing cup and mainshaft bearing cup with Puller (special tool #9593, Remover, Bearing Cup) (1) installed in cup (2).
    GC0108992Courtesy of CHRYSLER GROUP, LLC

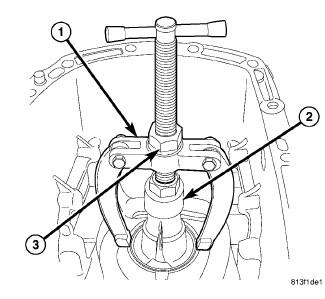

  2. Install Remover (special tool #8915, Brace) (1) on puller (2) and tighten remover nut (3) to pull cups out of the housing. Then remove end-play shims from bearing bores and oil supply washer from mainshaft bearing bore.
    GC0108993Courtesy of CHRYSLER GROUP, LLC
  3. Remove input shaft retainer (1) bolts (2) and remove retainer.
    GC0108994Courtesy of CHRYSLER GROUP, LLC

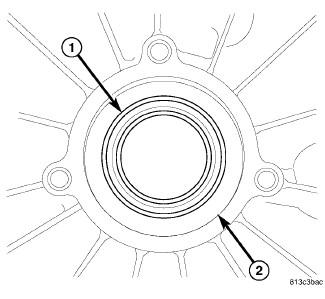

  4. Remove input shaft seal (1) from retainer bore (2) with a seal pick.
