Input Shaft

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0083331Courtesy of CHRYSLER GROUP, LLC
  1. Heat input shaft bearing (1) on bearing heater (2) to a maximum of 150 Celsius (300° Fahrenheit).
    GC0109001Courtesy of CHRYSLER GROUP, LLC
  2. Using welding gloves or tongs, install bearing (2) on input shaft (1).

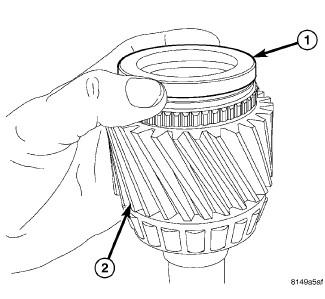

    GC0109002Courtesy of CHRYSLER GROUP, LLC
  3. Push input shaft mainshaft bearing seal (1) on the end of fifth gear (2).
