Section 1586 (G56 Manual Transmission - (Service Information) - 2500 Hd): Assembly: Countershaft
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Install first/reverse gear bearing oil slinger on the rear housing end of the countershaft.
- Heat rear housing countershaft bearing (1) on bearing heater (2) to a maximum of 150 Celsius (300° Fahrenheit).
- Using welding gloves or tongs, install countershaft bearing (1) on countershaft (2).

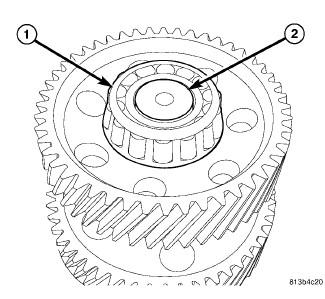

- Heat front housing countershaft bearing (1) on bearing heater (2) to a maximum of 150 Celsius (300° Fahrenheit).
- Using welding gloves or tongs, install front housing countershaft bearing (1) on countershaft (2).
