GEARTRAIN, Planetary: Description

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The 68RFE transmission does not use a number 7 thrust bearing.

Courtesy of CHRYSLER GROUP, LLC

1 - THRUST BEARING NO. 1

2 - THRUST BEARING NO. 2

3 - THRUST BEARING NO. 3

4 - THRUST BEARING NO. 4

5 - THRUST BEARING NO. 5

6 - THRUST BEARING NO. 6

8 - THRUST BEARING NO. 8

9 - THRUST BEARING NO. 9

10 - THRUST BEARING NO. 10

11 - THRUST BEARING NO. 11

12 - THRUST BEARING NO. 12

13 - OUTPUT SHAFT BEARING

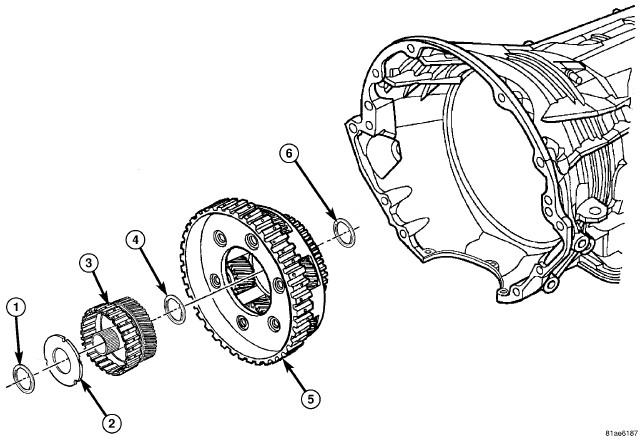

Courtesy of CHRYSLER GROUP, LLC

1 - THRUST BEARING NUMBER 6

2 - OUTPUT END PLAY THRUST PLATE (SELECTIVE)

3 - 4C CLUTCH HUB / REACTION SUN GEAR

4 - THRUST BEARING NUMBER 8

5 - REACTION PLANETARY CARRIER

6 - THRUST BEARING NUMBER 9

The planetary geartrain is located behind the 2C/4C retainer/bulkhead, toward the rear of the transmission. The planetary geartrain consists of two primary assemblies:

Reaction (3, 5).

Courtesy of CHRYSLER GROUP, LLC

1. SNAP RING

2. NUMBER NINE BEARING

3. REVERSE PLANETARY CARRIER

4. THRUST BEARING NUMBER 10

5. INPUT SUN GEAR

6. NUMBER 11 BEARING (CAPTURED)

7. INPUT PLANETARY CARRIER

8. INPUT ANNULUS GEAR

Reverse (3).
Input (5, 7, 8).
