Non-High Output Engine
WARNING: This page is about a different car, the 2018 RAM 2500 HD and 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

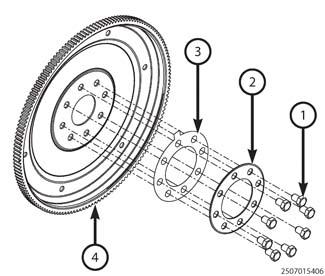

A new bolts (1), clamp ring (2) must be used anytime the flex plate has been removed. Do not lubricate new bolts as they are already coated with an anti-scuff treatment.
NOTE:
Align the flex plate to hub paint marks, where applicable.
- Install the flex plate (4), friction shim (3), clamping ring (2) and tighten bolts (1) finger tight.
- Use a crisscross pattern to tighten bolts to 137 N.m (101 ft. lbs.).
- Install the transmission. Refer to appropriate Transmission Service Information article .
