Resistor, Blower Motor: Description

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

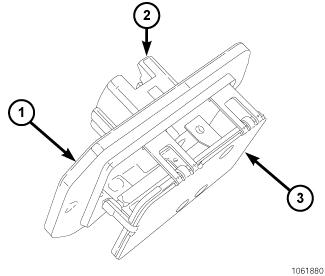

GC0089522Courtesy of CHRYSLER GROUP, LLC

The blower motor resistor is mounted to the bottom of the HVAC housing, below the glove box. The blower motor resistor consists of a molded plastic mounting plate (1) with an integral wire connector receptacle (2). Behind the mounting plate are resistors contained within a metal heat sink (3).
